REFOIL CR 3

film processing

The stable basic unit in steel tube welded construction, the precise axis system and the high-precision tools make the REFOIL CR3 the ideal system for processing film on flat parts, such as metal sheets or plastic plates.

3D-Animation

CNC machining system CR3

The 3-axis machining systems of the REFOIL CR3 series set a new standard in terms of accuracy and functionality. The machining table is adapted to the usual format sizes; however, special sizes are also possible.
For part clamping, a vacuum table with optimally divided vacuum zones for different part sizes is available; but other clamping systems can also be used. The REFOIL CR3 is equipped with common industry-standard NC software for the control functions, an interface to CAD/CAM software and the option to provide remote maintenance.

Tools

Cutting, punching and pulling tools are available; modularly built, with a uniform exchange system.

Cutting tool

The cutting tool can be adapted to each film; the cutting depth can be changed without highly sensitive controls

Milling module

The film is not aerated and removed in a time-consuming process The “milling module”, which actually only generates negative pressure, virtually lifts the film off, and it is also cut into small pieces.

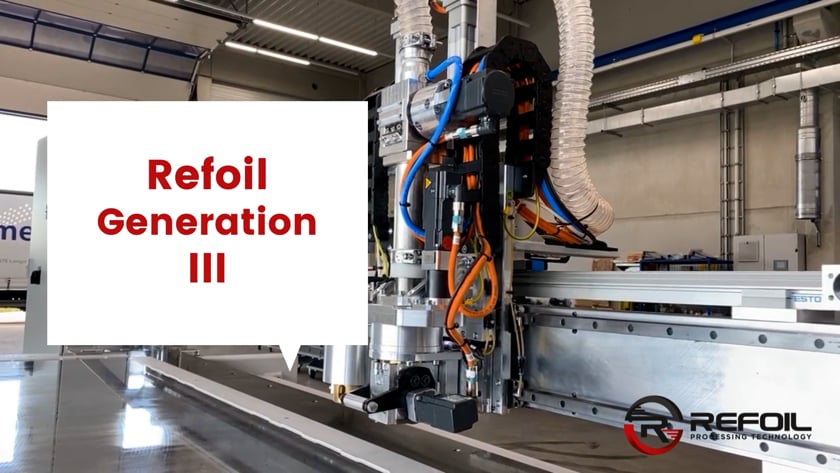

CR3 in Action

More Information?

You want to know more about our services in the field of foiling? Would you like more information about our fully automatic film processing?
